PoC for CVE-2021-32537

[mectury]

The affected driver is named RTKVHD64.sys and seems to be available on a bunch of mainstream hardware (tested the below hardware configurations but probably more are vulnerables):

• Microsoft Surface Laptop,
• Microsoft Surface Book,
• Microsoft Surface Pro,
• Lenovo Thinkpad,
• Dell XPS 13.

I've been told by Realtek that the vulnerability is patched and that the fix is distributed by Windows Update which I haven't been able to verify myself. This is the documentation released by Taiwan Computer Emergency Response Team: TVN-202106002 / CVE-2021-32537.

Binaries are available in the release section.

Root cause analysis​

During initialization, the driver allocates structures on the kernel pool. In InitDeviceExtension called by StartDevice (parameter of PcAddAdapterDevice):

devext->unk->events = ExAllocatePoolWithTag(pooltype, 0x5F0ui64, 'mEvt');

struct EVT {
    PKSPIN_LOCK lock;
    PVOID       event;
    UINT64      someflag;
} /* sizeof == 0x18 */

struct MEVT {
    struct EVT array[63];
    UINT64 flags;
} /* sizeof == 0x18*63 + 8 == 0x5f0 */

The EVT array has a fixed size of 63 elements. When sending 0x225f04 IOCTL to the driver, the first DWORD of the input is used as an array index without any sanitization:

input_index = *(_DWORD *)IrpSystemBuffer;
    v5 = Crash(
        mevts,
        stack->FileObject,
        unk,
        &mevts->array[input_index].event,
        (KSPIN_LOCK *)&mevts->array[input_index])

Crash calls KeAcquireSpinLockRaiseToDpc using the KSPIN_LOCK pointer &mevts->array[input_index] which is out-of-bounds. This leads to the following BSoD when setting input_index to 0xaaaaaaaa:

5: kd> !analyze -v
*******************************************************************************
*                                                                             *
*                        Bugcheck Analysis                                    *
*                                                                             *
*******************************************************************************

IRQL_NOT_LESS_OR_EQUAL (a)
An attempt was made to access a pageable (or completely invalid) address at an
interrupt request level (IRQL) that is too high.  This is usually
caused by drivers using improper addresses.
If a kernel debugger is available get the stack backtrace.
Arguments:
Arg1: ffffac983ca17910, memory referenced
Arg2: 0000000000000002, IRQL
Arg3: 0000000000000001, bitfield :
    bit 0 : value 0 = read operation, 1 = write operation
    bit 3 : value 0 = not an execute operation, 1 = execute operation (only on chips which support this level of status)
Arg4: fffff8065d8e4793, address which referenced memory

TRAP_FRAME:  ffffd60852d52d30 -- (.trap 0xffffd60852d52d30)
NOTE: The trap frame does not contain all registers.
Some register values may be zeroed or incorrect.
rax=0000000000000000 rbx=0000000000000000 rcx=0000000000000000
rdx=ffffac885763cbc0 rsi=0000000000000000 rdi=0000000000000000
rip=fffff8065d8e4793 rsp=ffffd60852d52ec0 rbp=ffffac883ca17920
 r8=aaaaaaaaaaaaaaaa  r9=ffffac983ca17918 r10=ffffac883ca17920
r11=aaaaaaaaaaaaaaaa r12=0000000000000000 r13=0000000000000000
r14=0000000000000000 r15=0000000000000000
iopl=0         nv up ei pl zr na po nc
nt!KeAcquireSpinLockRaiseToDpc+0x53:
fffff806`5d8e4793 f0480fba2b00    lock bts qword ptr [rbx],0 ds:00000000`00000000=????????????????
Resetting default scope

STACK_TEXT:
ffffd608`52d52be8 fffff806`5da07b69     : 00000000`0000000a ffffac98`3ca17910 00000000`00000002 00000000`00000001 : nt!KeBugCheckEx
ffffd608`52d52bf0 fffff806`5da03e69     : 00000000`00000002 ffffdf00`8a8c0180 00000000`00000003 fffff806`5d84b0b6 : nt!KiBugCheckDispatch+0x69
ffffd608`52d52d30 fffff806`5d8e4793     : ffffd608`52d52fb0 00000000`00000190 00000000`00000001 ffffac88`5763b770 : nt!KiPageFault+0x469
ffffd608`52d52ec0 fffff806`5b996dc1     : aaaaaaaa`aaaaaaaa ffffac88`4b86ba00 ffffd608`52d53440 00000000`00000040 : nt!KeAcquireSpinLockRaiseToDpc+0x53
ffffd608`52d52ef0 fffff806`5b996b1f     : ffffac88`4b86ba00 00000000`00000000 ffffac88`52fe7d40 fffff806`5d867ce0 : RTKVHD64+0x16dc1
ffffd608`52d52f20 fffff806`5bb49455     : ffffac88`3ca17920 00000000`c0000002 00000000`00000001 fffff806`00000000 : RTKVHD64+0x16b1f
ffffd608`52d52fc0 fffff806`5bb6e6d0     : 00000000`c0000001 ffffac88`4b86bc38 ffffac88`3c9471a0 ffffac88`3c9471a0 : RTKVHD64+0x1c9455
ffffd608`52d53020 fffff806`5d852f55     : ffffac88`4b86ba00 ffffd608`52d53100 ffffac88`4b86bc80 ffffac88`3c276ce0 : RTKVHD64+0x1ee6d0
ffffd608`52d53070 fffff806`5bf416bf     : ffffac88`4b86ba00 ffffd608`52d53100 ffffac88`4b86bc80 ffffac88`3c276ce0 : nt!IofCallDriver+0x55
ffffd608`52d530b0 fffff806`5bf41023     : ffffac88`4b86ba00 00000000`00000001 00000000`00000000 ffffac88`5763cbc0 : ksthunk!CKernelFilterDevice::DispatchIrp+0x23b
ffffd608`52d53110 fffff806`5d852f55     : 00000000`0000000e 00000000`00000000 ffffd608`20206f49 00000000`00000001 : ksthunk!CKernelFilterDevice::DispatchIrpBridge+0x13
ffffd608`52d53140 fffff806`5dbfd898     : ffffd608`52d534c0 ffffac88`4b86ba00 00000000`00000001 ffffac88`574de0c0 : nt!IofCallDriver+0x55
ffffd608`52d53180 fffff806`5dbfd165     : 00000000`00225f04 ffffd608`52d534c0 00000000`00000005 ffffd608`52d534c0 : nt!IopSynchronousServiceTail+0x1a8
ffffd608`52d53220 fffff806`5dbfcb66     : 00007ffe`eb9fda90 00000000`00000000 00000000`00000000 00000000`00000000 : nt!IopXxxControlFile+0x5e5
ffffd608`52d53360 fffff806`5da075b5     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!NtDeviceIoControlFile+0x56
ffffd608`52d533d0 00007ffe`edf2ccf4     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : nt!KiSystemServiceCopyEnd+0x25
000000fd`e0eff8b8 00000000`00000000     : 00000000`00000000 00000000`00000000 00000000`00000000 00000000`00000000 : 0x00007ffe`edf2ccf4

5: kd> db ffffac983ca17910-(0xaaaaaaaa*0x18)
ffffac88`3ca17920  00 00 00 00 00 00 00 00-70 83 2e 38 88 ac ff ff  ........p..8....
ffffac88`3ca17930  00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00  ................
ffffac88`3ca17940  40 8c 8f 44 88 ac ff ff-00 00 00 00 00 00 00 00  @..D............
ffffac88`3ca17950  00 00 00 00 00 00 00 00-d0 83 2e 38 88 ac ff ff  ...........8....
ffffac88`3ca17960  00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00  ................
ffffac88`3ca17970  e0 85 2e 38 88 ac ff ff-00 00 00 00 00 00 00 00  ...8............
ffffac88`3ca17980  00 00 00 00 00 00 00 00-90 84 2e 38 88 ac ff ff  ...........8....
ffffac88`3ca17990  00 00 00 00 00 00 00 00-00 00 00 00 00 00 00 00  ................

5: kd> !pool ffffac88`3ca17920
Pool page ffffac883ca17920 region is Nonpaged pool
 ffffac883ca17000 size:  900 previous size:    0  (Allocated)  PFXM
*ffffac883ca17910 size:  600 previous size:    0  (Allocated) *tvEm
        Owning component : Unknown (update pooltag.txt)
 ffffac883ca17f10 boyut: d0 önceki boyut: 0 (Ücretsiz) 2.3.

GitHub - Lagal1990/CVE-2021-31955-POC

Contribute to Lagal1990/CVE-2021-31955-POC development by creating an account on GitHub.

github.com



[mectury]

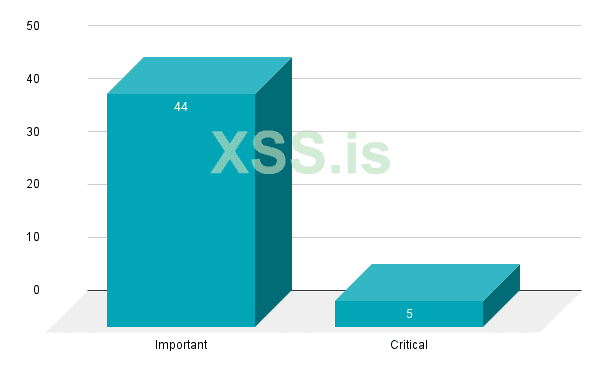

Microsoft patched 49 CVEs in its June 2021 Patch Tuesday release, including five CVEs rated as critical and 44 rated as important.

Tenable's Security Response Team is aware that others may be counting CVE-2021-33741 as part of Patch Tuesday. However, it was patched on June 4 and is not included in our counts.

This month’s update includes fixes for:

• .NET Core & Visual Studio
• 3D Viewer
• Microsoft DWM Core Library
• Microsoft Intune
• Microsoft Office
• Microsoft Office Excel
• Microsoft Office Outlook
• Microsoft Office SharePoint
• Microsoft Scripting Engine
• Microsoft Windows Codecs Library
• Paint 3D
• Role: Hyper-V
• Visual Studio Code - Kubernetes Tools
• Windows Bind Filter Driver
• Windows Common Log File System Driver
• Windows Cryptographic Services
• Windows DCOM Server
• Windows Defender
• Windows Drivers
• Windows Event Logging Service
• Windows Filter Manager
• Windows HTML Platform
• Windows Installer
• Windows Kerberos
• Windows Kernel
• Windows Kernel-Mode Drivers
• Windows Network File System
• Windows NTFS, Windows NTLM
• Windows Print Spooler Components
• Windows Remote Desktop
• Windows TCP/IP

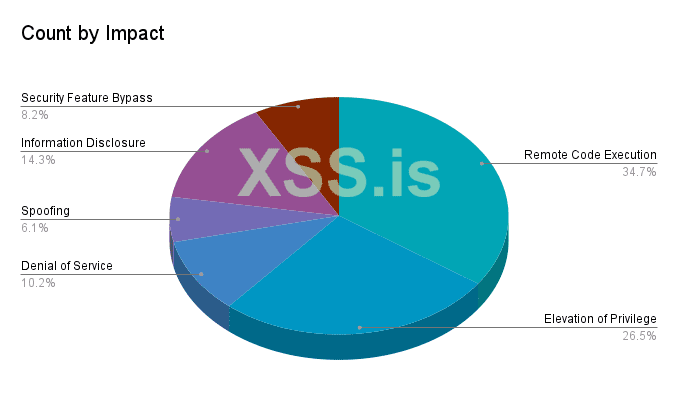

Remote code execution (RCE) vulnerabilities accounted for 34.7% of the vulnerabilities patched this month, followed by elevation of privilege (EoP) at 26.5%.



[mectury]

This is my first article, thank you for reading.



[varwar]

Cool, I have it at Lenovo IdeaPad, will test PoC later and write here a results. It should be vulnerable because of old modified date, I guess.



[d3im0S]

Amazing content....very clear to understand.



[mectury]

Amazing content....very clear to understand.

Thank you



[Artus1996]

thx very god, in my opinion it can be useful
